    • A solution can contain one or more pages and a page can contain one or more media items.
    • Pages are played in order from top to bottom.

Operating Procedure

Step 1     On the Solutions page, click New Solution and select a solution type.

     Solution types include regular solution, ultra-long-screen solution, and splicing screen solution, and rotating screen solution.

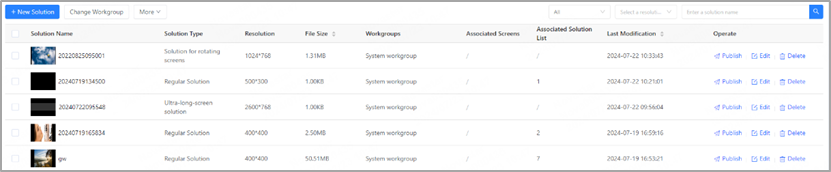

     Figure 1 Solutions    Image Removed     Image Added

Note:

The rotating screen solution is displayed only when the user account has permission.

Step 2     Specify a solution name and resolution, select associated solutions (optional), and click OK. (Splicing screen solutions also require row and column settings.)

    The solution editor is displayed.

...

Image Added

Notes:

          • Only regular screen solutions support intelligent tag matching.
          • Turning on intelligent tag matching allows a solution to be automatically published to the screens with the same tags as the solution. Please note that the solution cannot be added to schedules.
          • When a solution with tags is published to a player with the same tags, to ensure accurate matching, it needs to correspond with the player SN.

    The solution editor is displayed.

Figure 3-3 Solution editor

Image Modified

Table 3-2 Solution editor description

No.FunctionDescription
1

Set basic information

View the solution type and name, edit the solution name and resolution, and select screens to be associated.

2

Add media

Click a media icon to add the corresponding type of media to the page media editing area.
3
Save

View beginner’s guide, and preview, save and publish

a solutionSave, preview and publish a solution

solutions

View beginner’s guide, and preview, save and publish solutions.

4

Edit media and pages

Edit media and pages.

  • Media: Adjust media order and delete media.
    • Click the up/down buttons or drag media to change the layer order.
    • Media includes media types such as images, videos, mixed media, and documents, which can be adjusted in playback order by clicking the up/down buttons or manually dragging the media.
  • Page: Add, copy and delete pages, and adjust the page order.

Pages play sequentially from top to bottom.

5

Edit page media

Zoom pages in or out, delete media and change media layer order and layout. Batch operations are supported. A text widget can be added by double-clicking the blank area.

Users can copy media (including its properties) from other pages and paste the media to the current page.

  • You can undo at most 5 steps.
  • You can redo at most 5 steps.
6

Edit properties

Edit the properties of widgets and pages.

Widget properties: Widgets are the media items added to a page. The properties of different widgets vary. Select a widget before editing its properties.

Page properties: Specify the validity range, play count, and schedule for a page.

  • Validity Range: If this option is selected, Start Date and End Date will be displayed. Expired pages will be skipped during solution playback.
  • Times to Play: Specifies the number of times to play the page continuously.
  • Schedule: Specifies the time and interval to play a page. If there are overlapping timeslots with other pages, the pages will be played according to the page order from top to bottom.
