Related Information

    • A solution can contain one or more pages and a page can contain one or more media items.
    • Pages are played in order from top to bottom.

Operating Procedure

Step

...

     Figure 3-2 Solutions

     Image RemovedImage Removed

Step 2     Click New.

Step 3     Specify a name and resolution for the solution and click OK.

     The solution editing page is displayed.

Figure 3-3 Solution editing page

Image Removed

...

1 On the Solutions page, click New Solution and select a solution type.

 Solution types include regular solution, ultra-long-screen solution, and splicing screen solution.

          Image Added

Note:

The rotating screen solution is displayed only when the user account has permission.

Step 2 Specify a solution name and resolution, select associated solutions (optional), and click OK. (Splicing screen solutions also require row and column settings.)

Image Added

Notes:

          • Only regular screen solutions support intelligent tag matching.
          • Turning on intelligent tag matching allows a solution to be automatically published to the screens with the same tags as the solution. Please note that the solution cannot be added to schedules.
          • When publishing a solution, users need to manually search screens by name. For the screens with the same name, further distinguish them by SN.

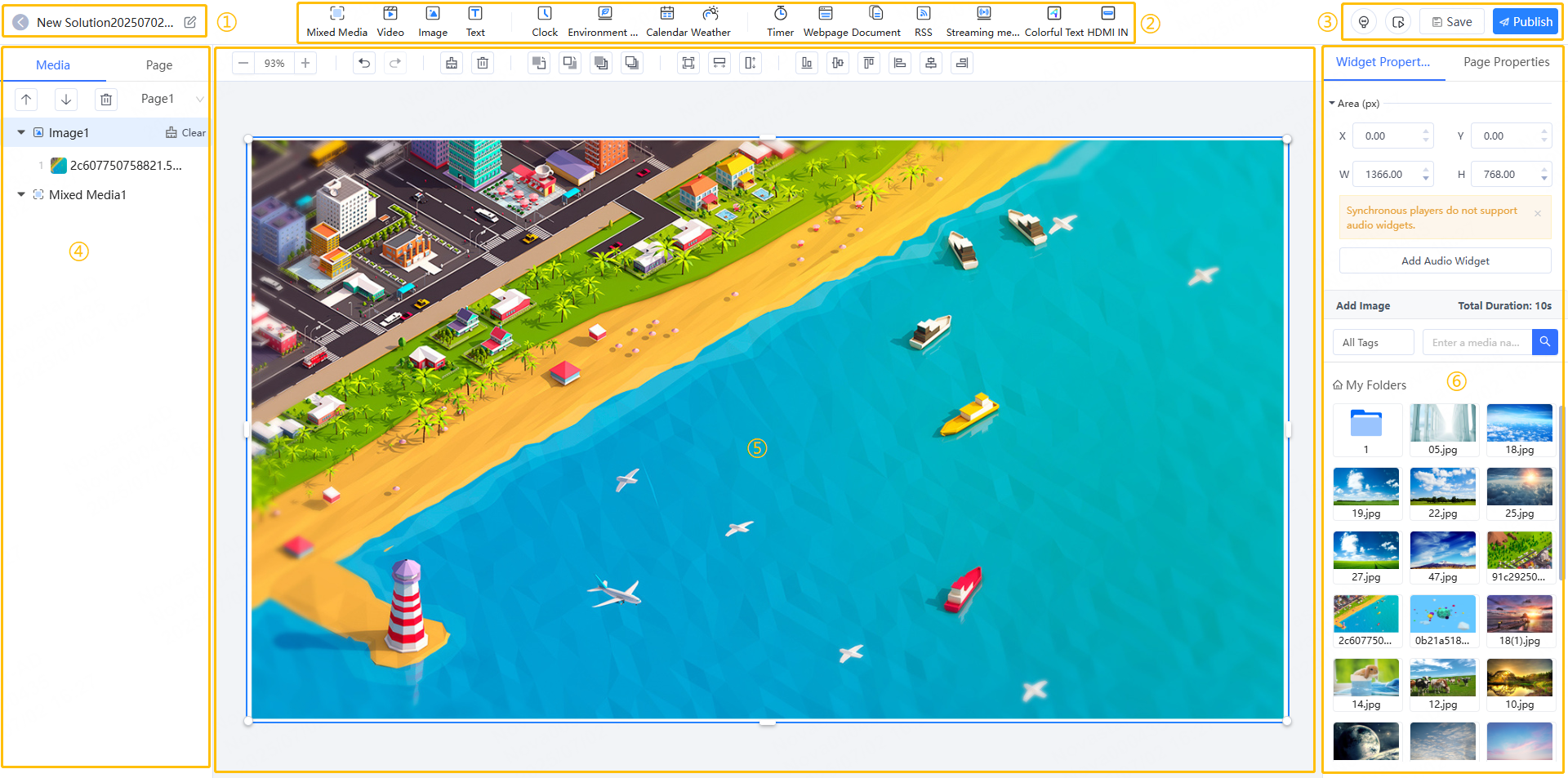

Step 3 Edit the solution on the solution editor.

After a solution is added, it can be immediately previewed in real time to ensure the content accuracy and playback effect.

Image Added

Table 3-2 Solution editor description

...

No.FunctionDescription
1
Setting

Set basic information

View

or change

the solution type and name, edit the solution name and

set the resolution

resolution, and select screens to be associated.

2
Adding

Add media

Add
Click a media icon to add the corresponding type of media to the page media editing area
.Click Image Removed to select the resources from ContentSave
.
3

Saving and publishing solutions

View beginner’s guide, and preview, save and publish solutions

View beginner’s guide, and preview, save and publish solutions.

4

Editing solution pages

Add, copy,

Edit media and pages

Edit media and pages.

  • Media: Adjust media order and delete media.
    • Click the up/down buttons or drag media to change the layer order.
    • Media includes media types such as images, videos, mixed media, and documents, which can be adjusted in playback order by clicking the up/down buttons or manually dragging the media.
  • Page: Add, copy and delete pages, and
change
  • adjust the page order
of pages
  • .

Pages

are played in order

play sequentially from top to bottom.

5
Editing

Edit page media

Zoom pages in or out, delete media and change media layer order and layout. Batch operations are supported. A text widget can be added by double-clicking the

whitespace

blank area.

Users can copy media (including its properties) from other pages and paste the media to the current page.

You can undo at most 5 steps.

You can redo at most 5 steps.

6
Editing

Edit properties

Edit the properties of widgets and pages.

Widget properties: Widgets are the media items added to a page. The properties of different widgets vary. Select a widget before editing its properties.

Page properties: Specify the validity range, play count, and schedule for a page.

  • Validity Range: If this option is selected, Start Date and End Date will be displayed. Expired pages will be skipped during solution playback.
  • Times to Play: Specifies the number of times to play the page continuously.
  • Schedule: Specifies the time and interval to play a page. If there are overlapping timeslots with other pages, the pages will be played according to the page order from top to bottom
.

Step 4    After the solution editing is done, click Save.

  • .
