Operating Procedure

Step 1 From the menu bar, choose Schedule.

Step 2 Select a schedule on the left of the page.

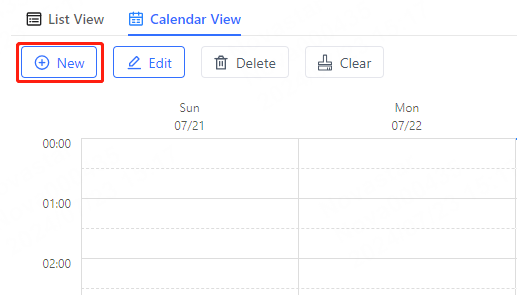

Step 3 Select the Calendar View

Step 4 Do any of the following to create a schedule.

• • • • Click New.
      • Click a cell in the timetable and click +. (In Day or Week view, each cell in the timetable represents one hour. In Month view, each cell in the timetable represents one day.)

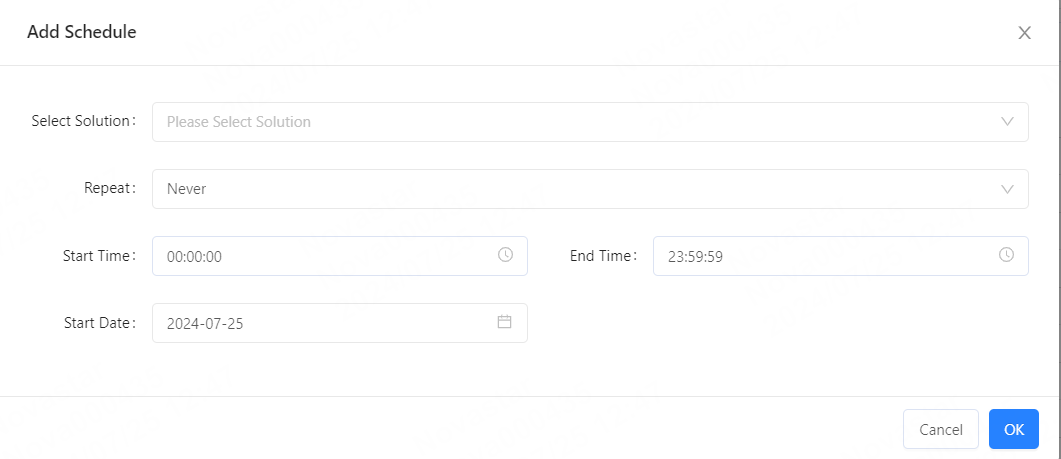

Step 5 On the Add Schedule window that appears, select s solution in the schedule, specify a repeat method, playback start time, playback end time, and start date.

• • • • When Never is selected next to Repeat, if the specified date is today or the subsequent seven days, the solution will play according to schedule; if the specified date is beyond this range, the solution will not play.
      • When Every day, Every week, Every month, or Every year is selected next to Repeat, the solution will play according to the selected repeat interval.

Step 6 After the settings are done, click OK.

 The time frames are graphically displayed in the timetable.

Step 7 Do the following as needed:

• • • • Drag the top or bottom edge of a time frame to make changes.
      • Drag a time frame to any other position within the specified date to make changes.
      • Adjust a time frame by dragging it to change its playback priority during overlapping time periods. The positions of time frames run from left to right, corresponding to a high to low priority. During overlapping periods, only the time frame with the highest priority will be played.
      • Double click a time frame to open the Edit Schedule
      • Edit schedule: Click a time frame and click Edit.
      • Delete schedule: Click a time frame and click Delete.
      • Clear schedule: Click Clear.

Notes:

• • • • • When the solution resolution does not match the selected player resolution, it may cause the image to stretch and deform, affecting the playback effect.
        • After a solution is published to an offline player. The solution will be published automatically after the player goes online.
