Scenarios
Users can capture screenshots of the playback window to check whether the playback status and the content being played are correct. If necessary, users can turn off the screen instantly.
Prerequisites
This function requires the following versions of players. If the player version does not meet the requirements, see 5.2.5.4 Upgrading Players to upgrade the player.
- Synchronous player: VPlayer V2.0.0 and later
- Asynchronous player: Taurus V1.2.4 and later
Related Information
- After a player is unbound, the system will clear the related screenshots.
- The screenshots only of the internal video source can be captured.
Operating Procedure
Step 1 Choose
> Players Management > Plays.
Step 2 Select one or more players and click Screenshot.

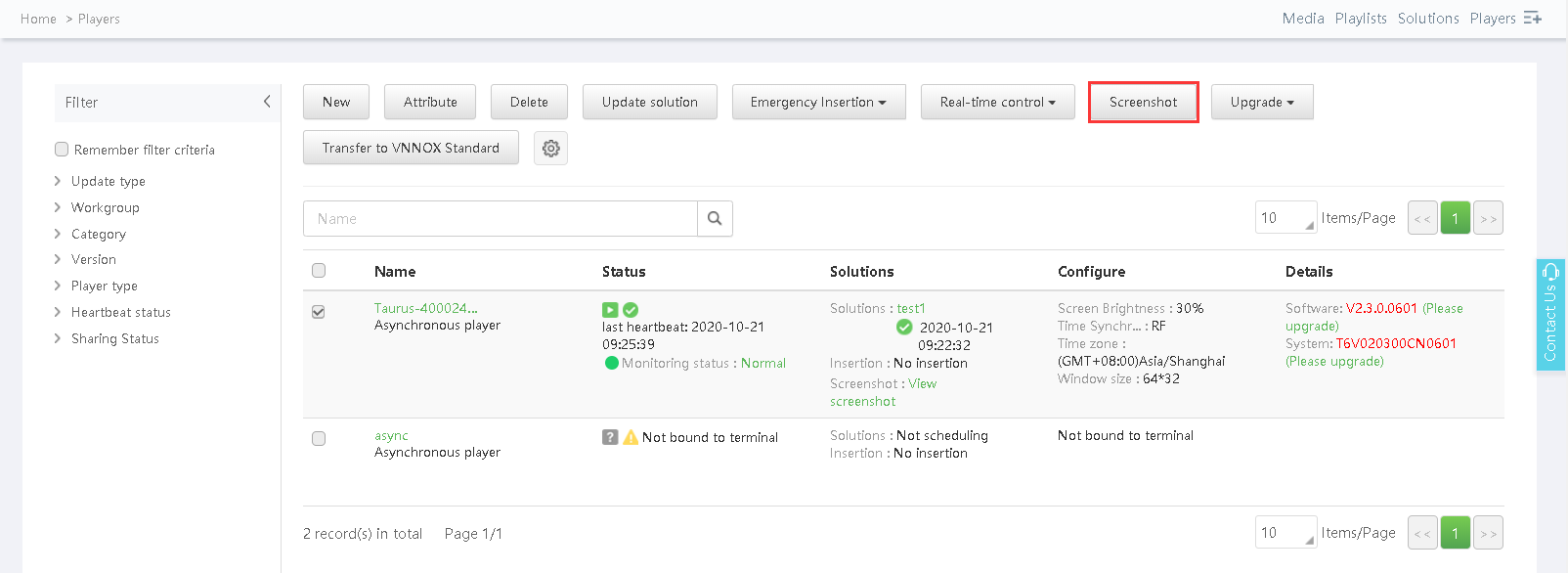

Figure 5-7 Screenshots
Step 3 Click OK. .. is displayed in the Solution column of the player list, as shown in Figure 5-8.

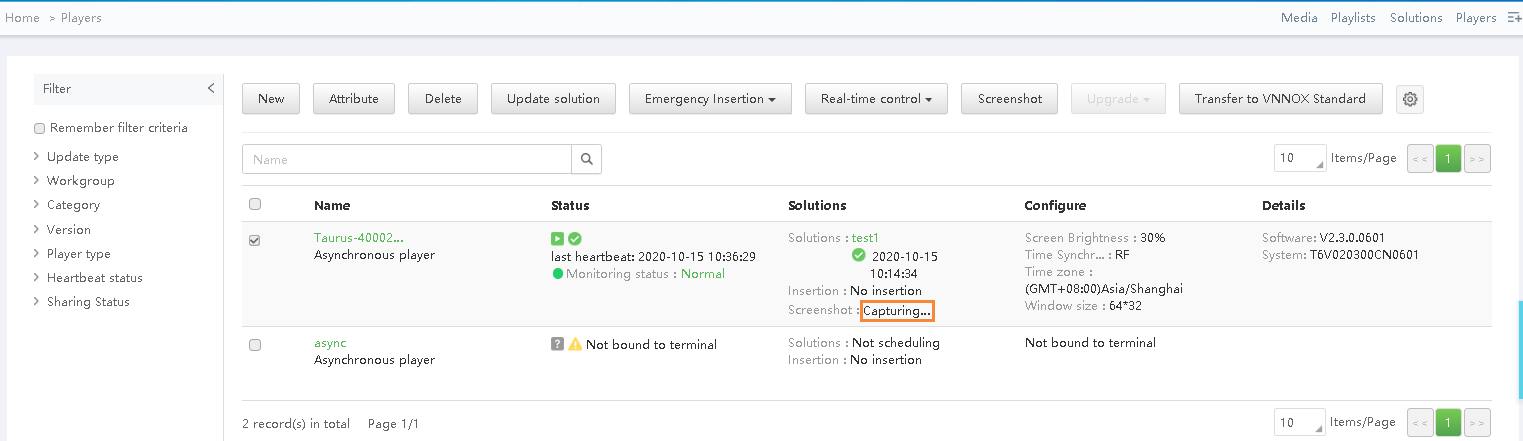

Figure 5-8 Capturing a screenshot

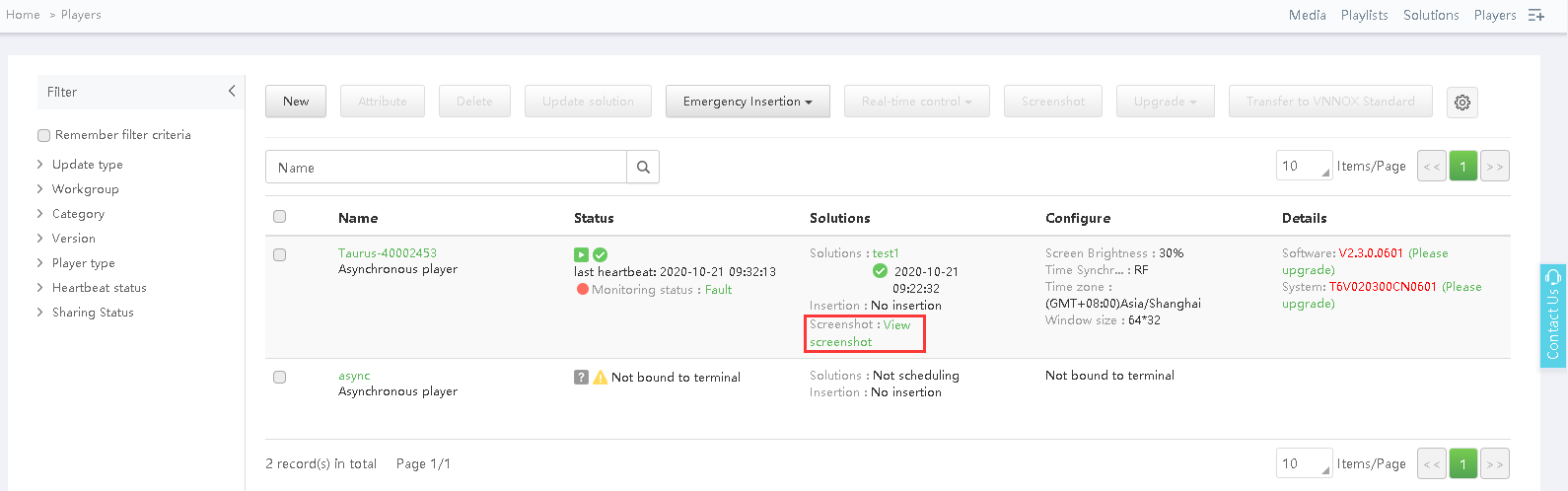

When View screenshot is displayed, the screenshot is captured successfully, as shown in Figure 5-9.
Figure 5-9 Viewing the screenshot
Step 4 Do any of the following to view the screenshot and the related information.
For the internal video source, the latest screenshot is displayed. For the external video source, the default picture is displayed.
- Click View screenshot.
- Click the player name to access the attribute page and select the Screenshot
Step 5 (Optional) Click Recapture to capture a screenshot again.
Step 6 (Optional) Click Emergency Off to turn off the screen immediately.
